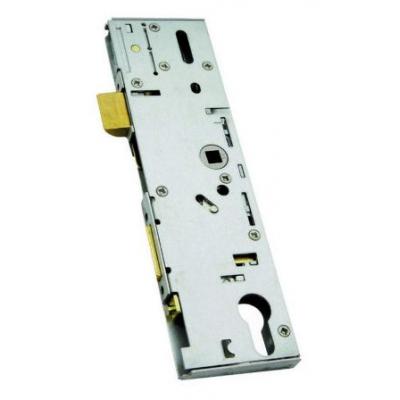

Era Deadbolt Door Lock Centre Case Gearbox Grey 45mm GEARBOX-45-65

This is a replacement gearbox for Era, Laird and Saracen Surelock multipoint locks. Commonly this is the part that is most likely to be at fault when a lock fails and becomes unusable. Replacing the gearbox is cost effective as it saves having to buy a complete new lock and it is quite easily achieved. ERA manufacture locks for other leading companies including Laird and Surelock and as always taking careful measurements will ensure a correct fit. The latch is easily adaptable to fit both left and right handed doors, it is designed for use with lever or lever handles but the addition of a split spindle will also allow for a lever or pad operation.

Key Features

Brand - Era. Door Type - Front Door. Range - Laird, Saracen, Surelock. Type - Gearbox for Multipoint Door Lock. Backset - 45mm. Suitable For - Front Door. Door Handing - Universal/Reversible. Material - Metal. Colour - Grey. Fits 92PZ Handle Centre. Lever/ Lever or Lever/Pad operation with the addition of a Split Spindle. Non Handed - fits both left and right handed doors. Lock case length - 220mm. Depth - 60mm. Width - 14mm. Centre of latch to centre of deadbolt - 87.5mm. Deadbolt length 29.5mm - Thickness 6.5mm. Distance between faceplate screw holes - First to second screw hole 43mm - Second to third screw hole 85.5mm. Model number - GEARBOX-45-65. EAN - 5011988056632.
