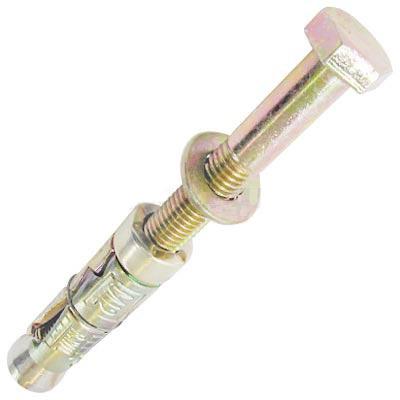

Rawlbolt Shield Anchor Loose Bolt 12mm x 105mm Pack of 5

£24.42 + Free delivery

( 00 customer ratings)
Price choice
Qty
Temporarily out of stock - more expected soon

Seller Not available

Make me an Offer

Product Description

The World’s most popular expanding shield anchor. Easy to use with good load carrying capacity. Ideal general-purpose anchor bolt with excellent tolerance to variation in hole size. The collapsible ferrule ensures that a positive clamping force is transmitted to the fixture. · 12mm bolt size. · 75mm shield length. · 105mm overall length. · 25mm maximum fixture thickness. Features · Ferrule marked with hole diameter for correct installation. · Pressed steel segments ensure consistent dimensional accuracy. · Optimum taper nut angle for maximum expansion in all substrates. Typical applications · Roller shutter doors. · Fire doors. · Steelwork. · Security grills. · Machinery. · Pipework/duct work supports. Suitable for the following materials: · Concrete. · Brickwork. · Stone.

Customers Viewing This Page May Be Interested in These Sponsored Links

Advertisement | Ad feedback

Technical Details

Boxed-Product Weight: 1080.00g

Quick Code: QCHO009460

Delivery Destinations: Visit the Delivery Destinations Help page to see where this item can be delivered. Find out more about our Delivery Rates and Returns Policy

Item model number: Not Available
