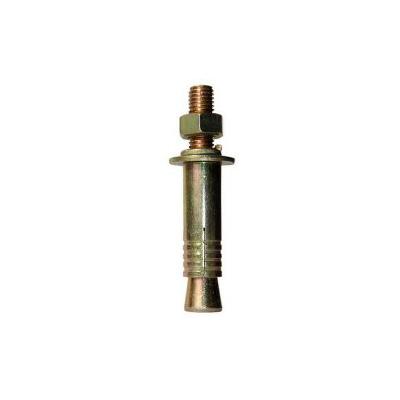

Rawlbolt Shield Anchor Bolt Projecting 8mm x 125mm Pack of 5

£21.96 + Free delivery

( 00 customer ratings)
Price choice
Qty
Temporarily out of stock - more expected soon

Seller Not available

Make me an Offer

Product Description

The World’s most popular expanding shield anchor. Easy to use with good load carrying capacity. Ideal general-purpose anchor bolt with excellent tolerance to variation in hole size. The collapsible ferrule ensures that a positive clamping force is transmitted to the fixture. · 8mm bolt size. · 50mm shield length. · 125mm overall length. · 60mm maximum fixture thickness. Features · Provides a projecting stud to support fixture during installation and removal. · Ferrule marked with hole diameter for correct installation. · Pressed steel segments ensure consistent dimensional accuracy. · Optimum taper nut angle for maximum expansion in all substrates. Typical applications · Roller shutter doors. · Fire doors. · Wall plates. · Security grills. · Machinery. · Signs. · Fencing. Suitable for the following materials: · Concrete. · Brickwork. · Stone.

Customers Viewing This Page May Be Interested in These Sponsored Links

Advertisement | Ad feedback

Technical Details

Boxed-Product Weight: 456.00g

Quick Code: QCHO006109

Delivery Destinations: Visit the Delivery Destinations Help page to see where this item can be delivered. Find out more about our Delivery Rates and Returns Policy

Item model number: 44990
